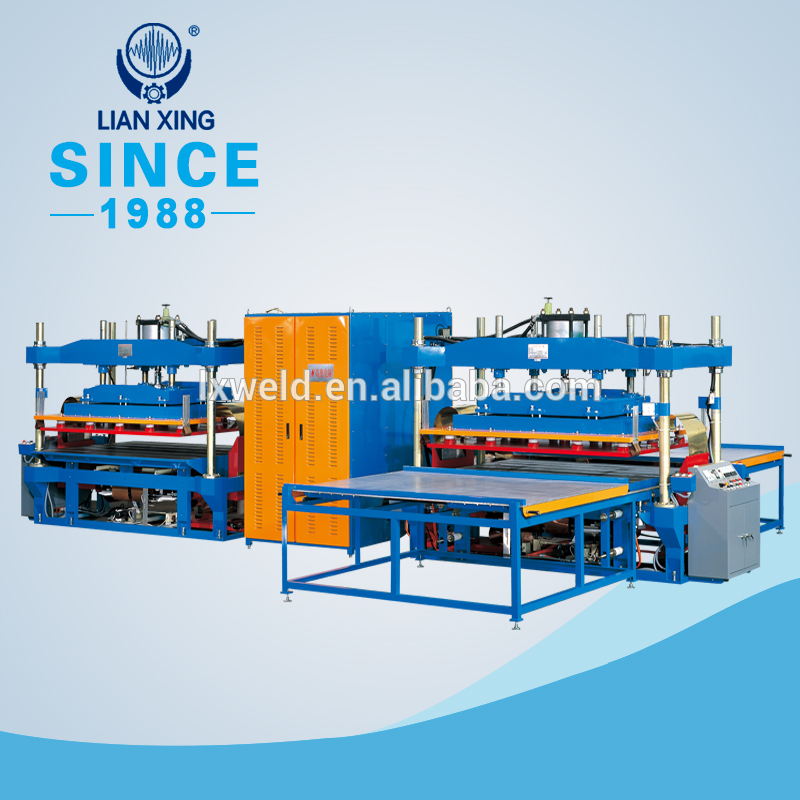

35kw four station inflatable toys high frequency welding machine

Quantity:
Product Description

Product Application

Be applicable to large octagonal pool,water bed,blow air ship,airbed,floating mat,swimming pool,blow air sofa and other big area PVC product processing.

Model
LXIST-2-PQ
High Frequency Output

15KW
25KW
35KW
Oscillation Frequency
13.56MHz
Supply Voltage
AC380V
Max Input
25KVA
40KVA
50KVA
Oscillation Tube
8T85RB
8T25RA
8T87RB
Rectifier Tube
HVP20
Max Perssure
1.5T
2T
2.5T
Up-down Distance
200mm
Pressure Mode
Pneumatic


Main Features

1.Introduction of Japanese technology,good-looking appearance,tational design,novel structure,strong practicality,reliable performance,efficient production,high automation level,perfect sealing.
2.The advanced square oscillation cavity design,reasonable oscillation circuit system can make the high frequency output stable and strong.
3.It is equipped with high sensitive spark protector that can make the mold damage to a minimum when striking a light,then the product scrap rate can greatly reduce.
4.Double over-current protection circuit can avoid overloading work of tube for extending the service life.
5.It is equipped with homology meter that can set current value,when high frequency current to set value,the homology meter will automatical cut off.It is also equipped high-frequency current (VC,cross-linking) electric control device.
6.According to the requirements of the product,then designing the compound mode of machine,double or one machine head of manual sliding table is easy and speedy to complete product heat seal.

Machine Parts


Name: Vacuum tube

Brand:Toshiba,jingguang





Name: Limit switch

Brand:Omron



Name: AC contactor

Brand:Mitsubishi





Name: Time break

Brand:CKC

Welded Samples



Certifications




Our Company

About LIANXING

Jiangmen Lianxing Welding Machinery Company Limited, is the manufacturer which specialized in researching, developing and producing all series of 1kw~180kw high frequency welding machine for almost 30 years.


We import advanced technology and component from Japan. Using the latest high frequency oscillation technology, adopt international standard industrial wave band of the oscillation frequency(13.56, 27.12Mhz ±0.6%) to produce the high frequency welding machines with best performance. All products of our company have passed the quality inspection standard which issued by CSBTS.


We specialized in Tarpaulin Welding Machine , PVC cylinder tube forming machine , soft-crease box making machine, blister packing machine, plastic welding machine etc. Besides these standard machines , we also provide the plastic welding solution and customized machines to meet our customer's special needs .




We have sold our machines over 10 countries all around world and our machines has been used in many field, such as :
Fabrication, Conveyor belts, Stationary (Office products, folder cover, Inner page of Album).
Architecture(Stretch Ceilings, Tensile membrane, Tents, Geo membranes).
Auto Equipment(Sun visor, carpet), Medical(Infusion bag, Urine bag).
PVC inflatable products(Inflatable Sofa, bed, toy).
Packaging (PVC cylinder tube packaging, Soft-crease Box, Blister packaging ) ,etc.


Our Service

Pre-Sales Service

* Customers provide product pictures or samples and explain the material and use of product;
* Organize engineering research and development team to analyze customer demand, then providing professional recommendations, opinions and solutions;
* The two sides carry out the plan and sign custom-made contract.
* Design machine and formulate production plan for manufacturing.

After-Sales Service

* Provided installation guidance and maintenance training for the customer.
* Ensure product met the requirement of the measuring accuracy in five years; Build customer file, product quality tracking service on a regular basis.
* Set up perfect sales service network, implement localization services.
* Response to customer demand 24 hours a day.
* Timely customer service promise (within 24 hours).

Packing & Delivery

Packaging
Size
Depend
Weight
Depend






Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Packaging
Size
Depend
Weight
Depend






Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
